Auto Vacuum Loader (TC)

Auto Vacuum Loader (TC)



Floor Mounted

The loader is controled by a belt-driven blower which is the best for silent operation and industry used.

  • The separated design of a blower and a suction hopper with mighty horsepower is suitable for long distance conveying. The flexible combination of one blower with one suction hopper up to four suction hoppers can help you to save space and equipment investment cost.

  • That also keeps your resin away the pollution and extend suction points easily for future need.

Various optional kinds of suction hoppers are available for your different need,such as stainless series for optics,booster series for flexible capacity,glass series and dust-free filter series.(standard suction hopper as factory standard)

  • The blowers are belt-driven that are the best choice for silent operation.(TAIWAN PAT No 231580)

REMARKS



  • The conveying capacity listed on the table is tested with standard new PS granular resin with the motor running continuously. Test condition of conveying capacity: Vertical conveying height=4M, Horizontal conveying length=5M

  • Conveying capacity varies with the shape and bulk density of the resin, piping, conveying length & height, power supply frequency and other factors.

  • Plastic material of Bulk density: 0.68 kg/L, Material with Powder calculated at 40%.

  • For the best result, please choose the loader according to 80~85% of loading capacity.

  • We reserve the right to change specifications without prior notice.

01

Works with any auto loaders to stop the regrinded resin from discharging to the surrounding area. TAIWAN & CHINA PAT.

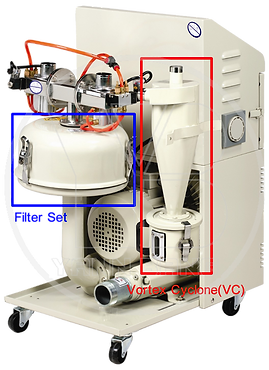

Patented Vortex Cyclone(VC)

Patented Vortex Cyclone(VC)

02

Patented Filter Set

As optional equipment from YANN BANG is perfect for dust-free of indoor working place. To do the filter routine maintenance is so easy without dirtying your hands and place. Unload the filter set without opening the cover until move to the please you want to clean.
TAIWAN& CHINA PAT.
